Introduction
TMB push mount is black and requires a panel hole diameter of 6.0 to 7.0mm. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000 Pcs.

Drawing and Dimension
Part No. | Drawing | Hole Dia (mm) | Panel Thickness (mm) | Material |

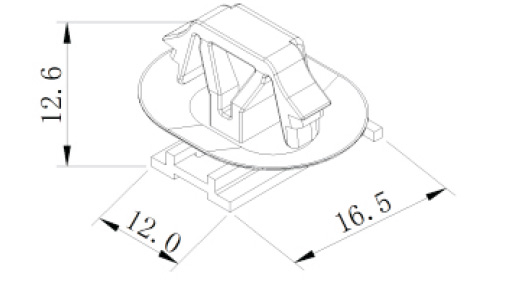

TEB9927 | ![]() ![]() | 7.0*12.0 | 1.0-3.0 | PP |

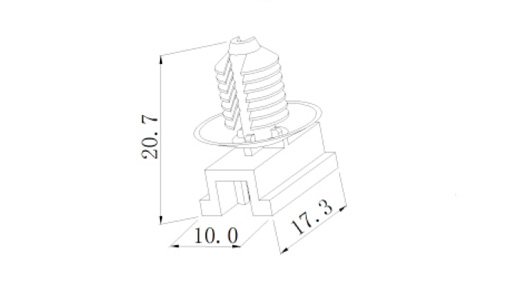

TEBA108 | ![]() ![]() | 6.0 | 0.8-8.0 | PA66 |

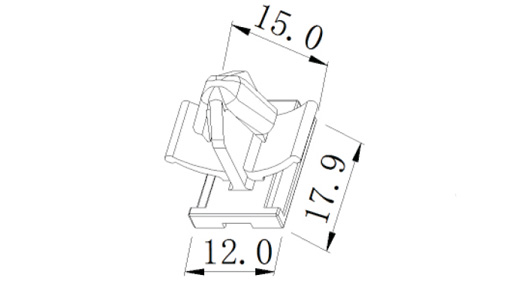

TEB631268 | ![]() ![]() | 7.0*12.0 | 1.7-2.6 | PA66 |

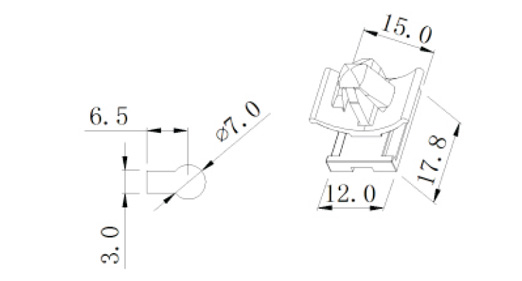

TEB631267 | ![]() ![]() | 7A+6.5*3.0 | 0.7-1.6 | PA66 |

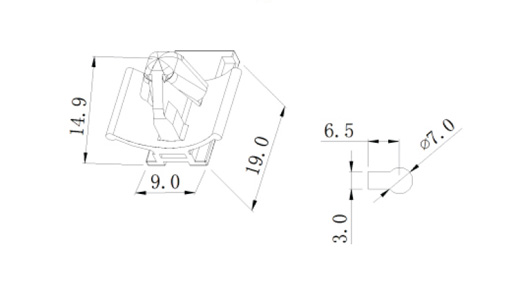

TEB630148 | ![]() ![]() | 7A+6.5*3.0 | 0.7-1.6 | PA66 |

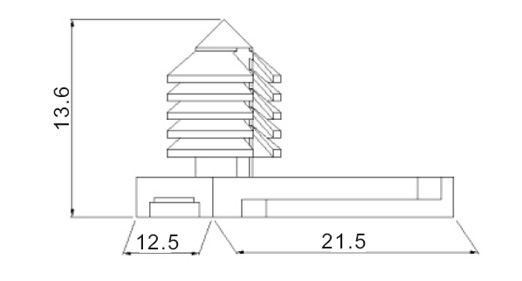

TEBM11 | ![]() ![]() | 7.0 | 1.5-6.0 | PA66 |
